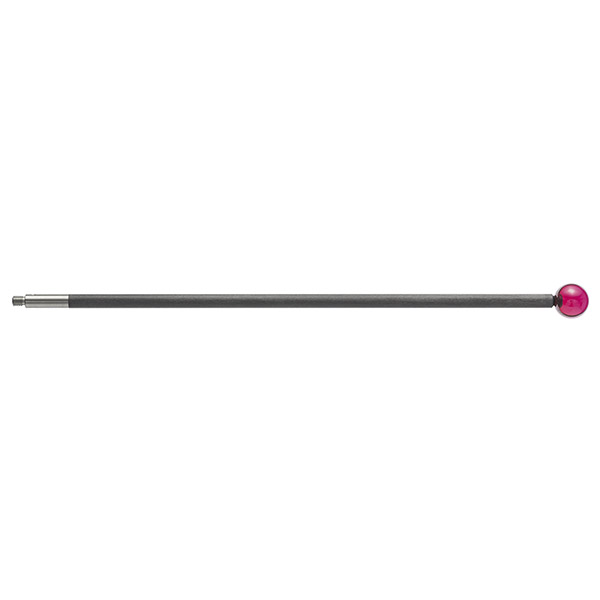

M3 Ø10.0 mm Zirconia ball, ceramic stem, L 100 mm, EWL 100 mm

$330.15

M3 Ø10.0 mm Zirconia ball, ceramic stem, L 100 mm, EWL 100 mm

Straight styli are designed to inspect simple features where direct, unobstructed contact with a measured surface is possible. A Carbon Fiber stem is very lightweight and ideal for applications where weight is critical. Zirconia is a tough ceramic material with hardness and wear characteristics approaching those of ruby. Its surface properties make it an ideal material for aggressive scanning applications on cast iron components.

Thread M3
Ball dia 10 mm
Stem material
Carbon Fiber
Tip material Zirconia
Holder material Stainless steel
Centre styli N

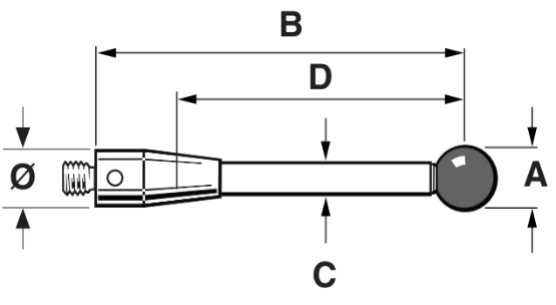

mm in
A – Ball dia 10.00 0.40
B – Length 100.00 3.94
C – Stem Dia. 4.00 0.16
D – Effective Working Ler 100.00 3.94
Mass Grams 4.53
SKU: A-5003-9495

Additional information

Weight 1 lbs
Dimensions 6 × 6 × 6 in
